Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC1E222CAP ALUM 2200UF 20% 25V RADIAL |
19,802 | - |
|
Datasheet |
Bulk | FC | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.008 A @ 120 Hz | 2.51 A @ 100 kHz | 22 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.378 (35.00mm) | - | Through Hole |
|
EEV-FK1E332MCAP ALUM 3300UF 20% 25V SMD |
23,942 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 3300 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | 33 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEV-FK1C472MCAP ALUM 4700UF 20% 16V SMD |
24,008 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 4700 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.545 A @ 120 Hz | 2 A @ 100 kHz | 33 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
ECA-2WHG220CAP ALUM 22UF 20% 450V RADIAL |
2,176 | - |
|
Datasheet |
Bulk | NHG-A | Active | 22 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 172.5 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|

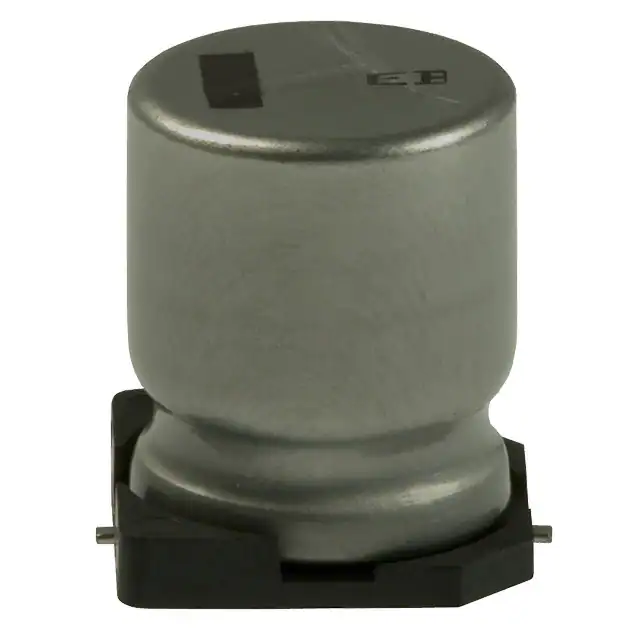

EEV-EB2C330SQCAP ALUM 33UF 20% 160V SMD |
6,020 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 33 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 258.5 mA @ 120 Hz | 470 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.669 (17.00mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEE-FK1V222SMCAP ALUM 2200UF 20% 35V SMD |
12,123 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FKS | Active | 2200 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.545 A @ 120 Hz | 2.06 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-FC1H561SCAP ALUM 560UF 20% 50V RADIAL |
5,435 | - |
|
Datasheet |
Bulk | FC | Active | 560 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.425 A @ 120 Hz | 1.9 A @ 100 kHz | 68 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
EEU-FC2A221CAP ALUM 220UF 20% 100V RADIAL |
2,258 | - |
|
Datasheet |
Bulk | FC | Active | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 760.5 mA @ 120 Hz | 1.08 A @ 100 kHz | 89 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEE-FK1E222AMCAP ALUM 2200UF 20% 25V SMD |
6,926 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 2200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | 35 mOhms | - | 0.630 Dia (16.00mm) | 0.669 (17.00mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
|
ECA-1EHG472CAP ALUM 4700UF 20% 25V RADIAL |
358 | - |
|
Datasheet |
Bulk | NHG-A | Active | 4700 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.013 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
EEE-FK2A331AMCAP ALUM 330UF 20% 100V SMD |
37,850 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 330 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 687.8 mA @ 120 Hz | 917 mA @ 100 kHz | 153 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEU-FC1J821SCAP ALUM 820UF 20% 63V RADIAL |
11,652 | - |
|
Datasheet |
Bulk | FC | Active | 820 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.939 A @ 120 Hz | 2.585 A @ 100 kHz | 43 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.984 (25.00mm) | - | Through Hole |
|

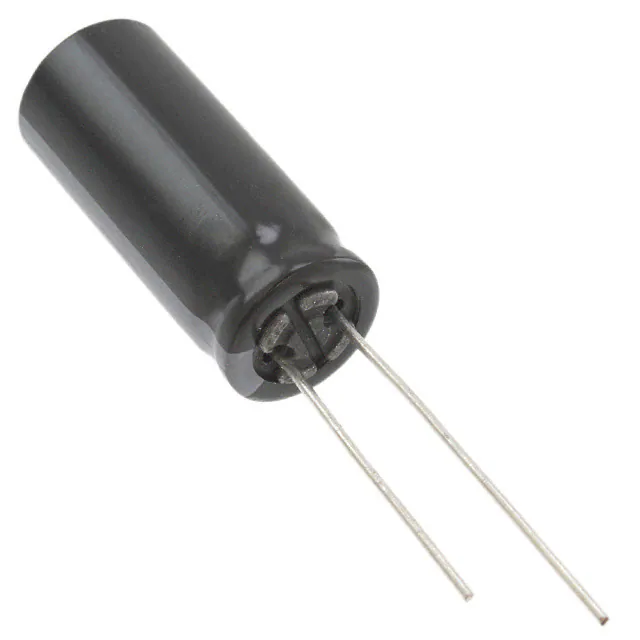

EEU-FR1V152LCAP ALUM 1500UF 20% 35V RADIAL |
14,943 | - |
|
Datasheet |
Bulk | FR-A | Active | 1500 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.904 A @ 120 Hz | 3.63 A @ 100 kHz | 13 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
EEE-FK1J681AMCAP ALUM 680UF 20% 63V SMD |
19,618 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 680 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.268 A @ 120 Hz | 1.69 A @ 100 kHz | 80 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEE-FK2A221AMCAP ALUM 220UF 20% 100V SMD |
13,011 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK | Active | 220 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 687.8 mA @ 120 Hz | 917 mA @ 100 kHz | 153 mOhms | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-EE2W470CAP ALUM 47UF 20% 450V RADIAL |
6,696 | - |
|
Datasheet |
Bulk | EE-A | Active | 47 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEV-EB2D101MCAP ALUM 100UF 20% 200V SMD |
14,959 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 100 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 583 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
EEV-EB2E680MCAP ALUM 68UF 20% 250V SMD |
105 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 68 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 544.5 mA @ 120 Hz | 990 mA @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-FC1J182CAP ALUM 1800UF 20% 63V RADIAL |
730 | - |
|
Datasheet |
Bulk | FC | Active | 1800 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.564 A @ 120 Hz | 3.205 A @ 100 kHz | 25 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.575 (40.00mm) | - | Through Hole |
|

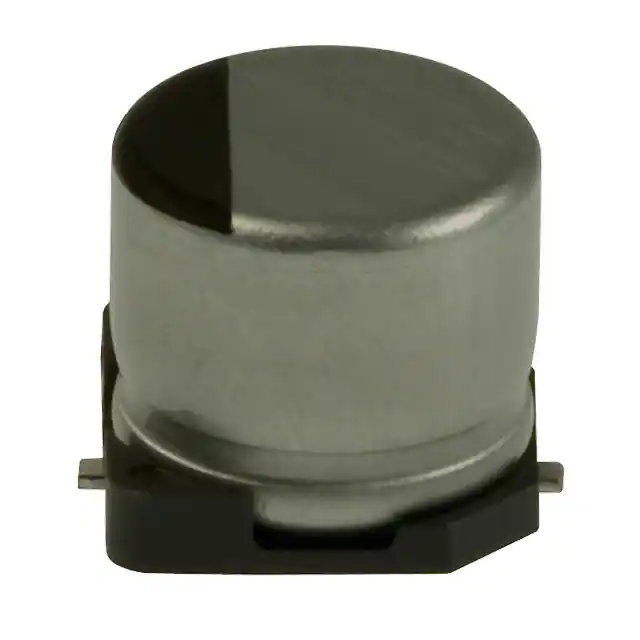

EEE-0GA221SPCAP ALUM 220UF 20% 4V SMD |
6,988 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 220 µF | ±20% | 4 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 82 mA @ 120 Hz | 139.4 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
