Diodes-Rectifiers-Single
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

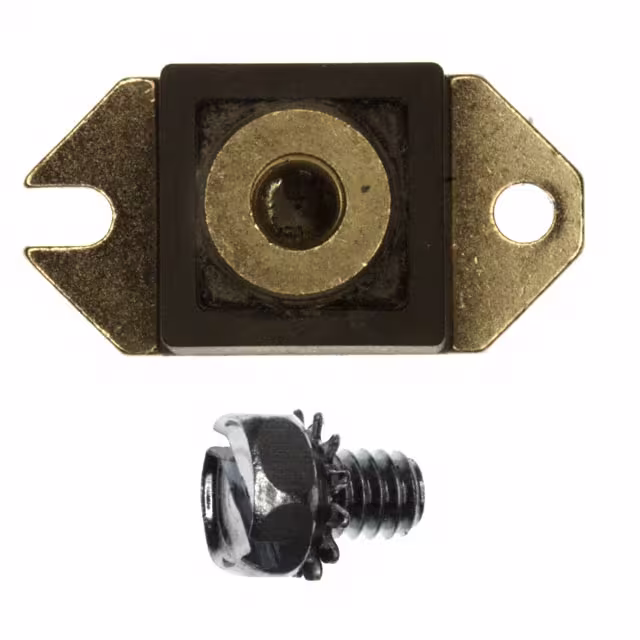

HS24515E3DIODE SCHOTTKY 15V 240A HALFPAK |
3,132 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Chassis Mount | 21700pF @ 5V, 1MHz | - | 150 mA @ 15 V | 15 V | 240A | - | 370 mV @ 240 A | |
|

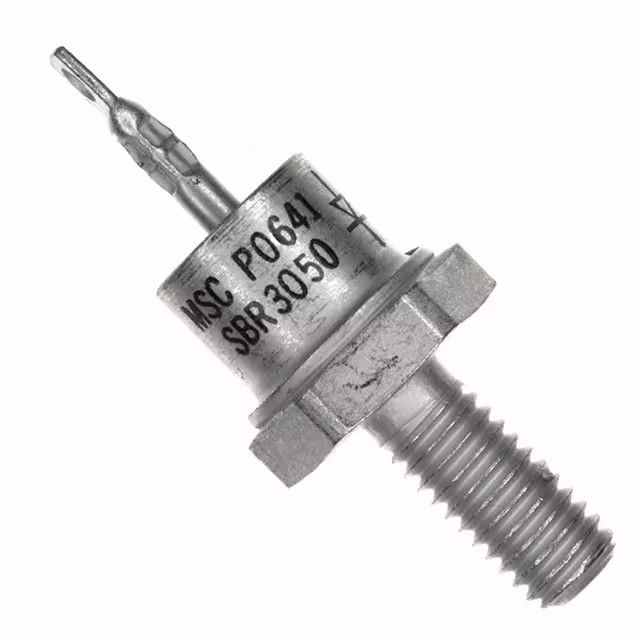

SBR3050E3DIODE SCHOTTKY 50V 30A DO203AA |
2,795 | - |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 1.5 mA @ 50 V | 50 V | 30A | -55°C ~ 175°C | 630 mV @ 30 A | |
|
SBR6045E3DIODE SCHOTTKY 45V 60A DO203AB |
3,677 | - |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 2 mA @ 45 V | 45 V | 60A | -65°C ~ 150°C | 600 mV @ 60 A | |
|
APT30DQ120BGDIODE GEN PURP 1.2KV 30A TO247 |
178 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 320 ns | 100 µA @ 1200 V | 1200 V | 30A | -55°C ~ 175°C | 3.3 V @ 30 A | |
|
|
SBR8050E3DIODE SCHOTTKY 50V 80A DO203AB |
2,450 | - |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Chassis, Stud Mount | - | - | 2 mA @ 50 V | 50 V | 80A | -65°C ~ 175°C | 740 mV @ 80 A | |
.jpg)
|
LSM345JE3DIODE SCHOTTKY 45V 3A DO214AB |
3,382 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 1.5 mA @ 45 V | 45 V | 3A | -55°C ~ 150°C | 520 mV @ 3 A | |
|
|
LSM545JE3DIODE SCHOTTKY 45V 5A DO214AB |
2,809 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 2 mA @ 45 V | 45 V | 5A | -55°C ~ 150°C | 520 mV @ 5 A | |
|
|
LSM845JE3DIODE SCHOTTKY 45V 8A DO214AB |
2,108 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 2 mA @ 45 V | 45 V | 8A | -55°C ~ 150°C | 520 mV @ 8 A | |
|
APT15D30KGDIODE GEN PURP 300V 15A TO220-2 |
2,232 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 32 ns | 150 µA @ 300 V | 300 V | 15A | -55°C ~ 150°C | 1.4 V @ 15 A | |
|
|
APT15D40KGDIODE GEN PURP 400V 15A TO220-2 |
2,729 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 35 ns | 150 µA @ 400 V | 400 V | 15A | -55°C ~ 175°C | 1.5 V @ 15 A | |
|
|
APT15S20KGDIODE SCHOTTKY 200V 25A TO220 |
2,432 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | 80 ns | 250 µA @ 200 V | 200 V | 25A | -55°C ~ 150°C | 830 mV @ 15 A | |
|
APT30S20SGDIODE SCHOTTKY 200V 45A D3 |
2,671 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | 55 ns | 500 µA @ 200 V | 200 V | 45A | -55°C ~ 150°C | 850 mV @ 30 A | |
|
|
APT60D30BGDIODE GEN PURP 300V 60A TO247 |
2,878 | - |
|
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 38 ns | 250 µA @ 300 V | 300 V | 60A | -55°C ~ 175°C | 1.4 V @ 60 A | |
|

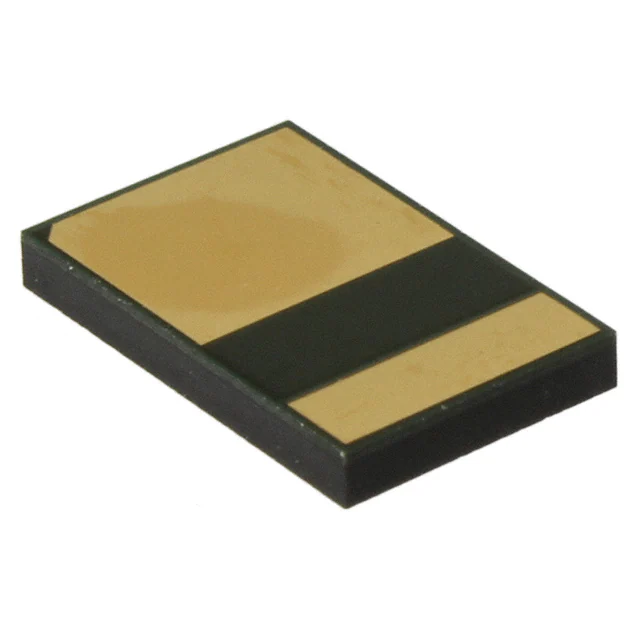

LX2400ILGDIODE GEN PURP 24V 25A 2LGA |
2,633 | - |
|
Bulk | IDEALSolar™ | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | - | - | 250 µA @ 20 V | 24 V | 25A (DC) | -55°C ~ 225°C | 65 mV @ 10 A | |
|
|
APT10SCD120KDIODE SCHOTTKY 1.2KV 10A TO220 |
505 | - |
|
Bulk | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Obsolete | Through Hole | - | 0 ns | - | 1200 V | 10A | - | 1.5 V @ 10 A | ||
|
1N4454UR-1DIODE GEN PURP 50V 200MA DO213AA |
106 | - |
|
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA (DC) | -55°C ~ 175°C | 1 V @ 10 mA | |
|
JANS1N6642DIODE GEN PURP 75V 300MA DO204AH |
801 | - |
|
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 5pF @ 0V, 1MHz | 5 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
|
JAN1N4454UR-1DIODE GEN PURP 50V 4A DO213AA |
4,709 | - |
|
Datasheet |
Bulk | Military, MIL-PRF-19500/144 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA (DC) | -55°C ~ 175°C | 1 V @ 10 mA |
|

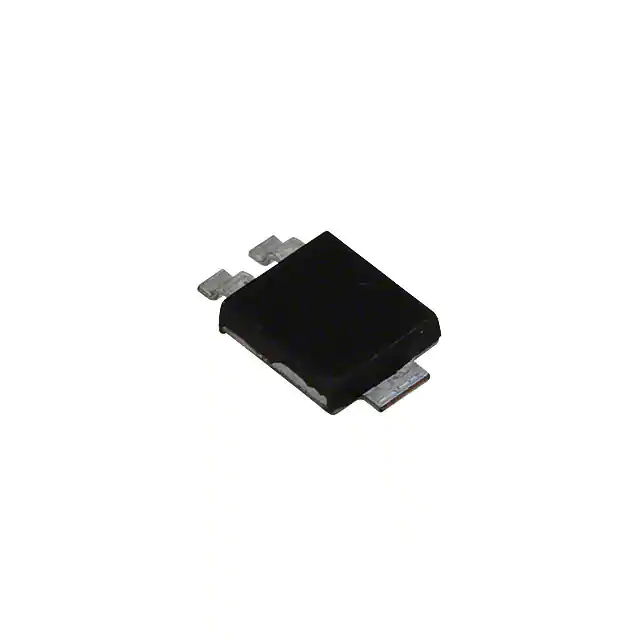

UPS840/TR13DIODE SCHOTTKY 40V 8A POWERMITE |
2,649 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 5 mA @ 40 V | 40 V | 8A | -55°C ~ 125°C | 450 mV @ 8 A | |
|
|
JANTX1N483BDIODE GEN PURP 70V 200MA DO35 |
2,792 | - |
|
Datasheet |
Bulk | Military, MIL-PRF-19500/118 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | - | 25 nA @ 70 V | 70 V | 200mA | -65°C ~ 175°C | 1 V @ 100 mA |
