Reed Relays
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2342-12-000RELAY REED DPDT 250MA 12V |
2,009 | - |
|
Datasheet |
Tray | 2300 | Active | Through Hole | 12VDC | DPDT (2 Form C) | 250 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 1.5 ms | 2 ms | -20°C ~ 85°C |
|
9007-12-01RELAY REED SPST 500MA 12V |
3,220 | - |
|
Datasheet |
Tube | 9000, Spartan | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|

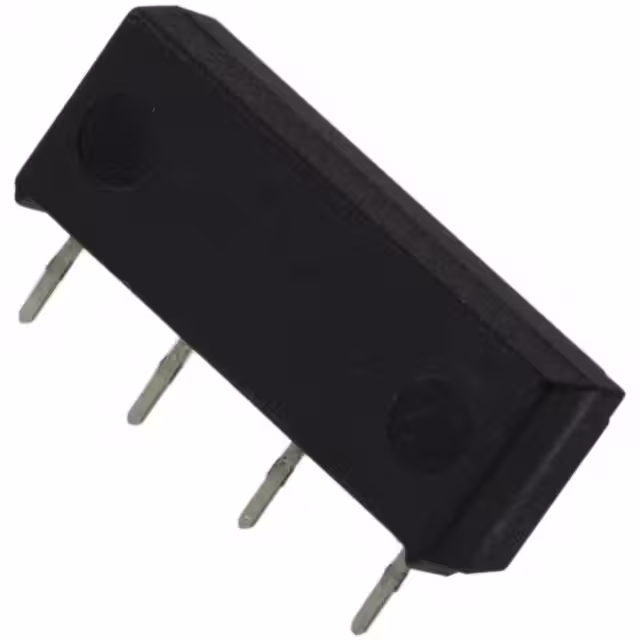

9007-24-01RELAY REED SPST 500MA 24V |
2,942 | - |
|
Datasheet |
Tube | 9000, Spartan | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C |
|
8L02-12-01RELAY REED DPST 500MA 12V |
3,604 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9.6 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
9094-12-01RELAY REED SPST 500MA 12V |
470 | - |
|
Datasheet |
Tube | 9094 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C |
|
|
8L02-05-11RELAY REED DPST 500MA 5V |
3,517 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L41-05-111RELAY REED SPDT 250MA 5V |
2,187 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
9401-12-00RELAY REED SPST 500MA 12V |
3,359 | - |
|
Datasheet |
Bulk | 9400 | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 14.5 mA | Non Latching | - | Gull Wing | - | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | -20°C ~ 85°C |
|
8L41-12-001RELAY REED SPDT 250MA 12V |
3,643 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
|
8L41-05-011RELAY REED SPDT 250MA 5V |
2,139 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
8L61-05-111RELAY REED SPDT 250MA 5V |
3,764 | - |
|
Datasheet |
Tube | 8L | Active | Surface Mount | 5VDC | SPDT (1 Form C) | 250 mA | 100VAC, 100VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | J Lead | - | 3.8 VDC | 0.5 VDC | 1 ms | 1 ms | -20°C ~ 85°C |
|
2204-12-301RELAY REED SPST 500MA 12V |
756 | - |
|
Datasheet |
Tube | 2200 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C |
|
|
2204-12-311RELAY REED SPST 500MA 12V |
826 | - |
|
Datasheet |
Tube | 2200 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -20°C ~ 85°C |
|
|
2333-12-000RELAY REED 3PST 500MA 12V |
724 | - |
|
Datasheet |
Tray | 2300 | Active | Through Hole | 12VDC | 3PST-NO (3 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C |
|
7104-24-1100RELAY REED 4PST 500MA 24V |
432 | - |
|
Datasheet |
Tube | 7000 | Active | Through Hole | 24VDC | 4PST-NO (4 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C |
|
2971-12-00RELAY REED SPDT 250MA 12V |
242 | - |
|
Datasheet |
Tube | 2970 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 6.7 VDC | 1 VDC | 1 ms | 2 ms | -40°C ~ 125°C |
|

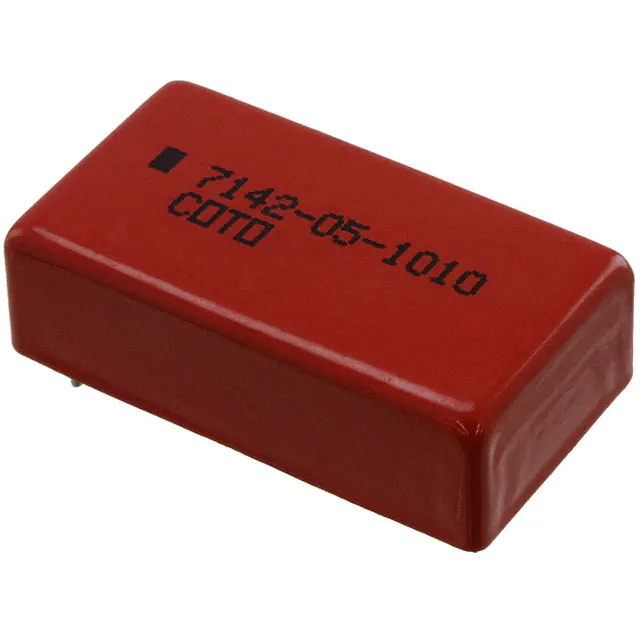

7142-05-1010RELAY REED DPDT 250MA 5V |
105 | - |
|
Datasheet |
Bulk | 7000 | Active | Through Hole | 5VDC | DPDT (2 Form C) | 250 mA | 150VAC, 150VDC - Max | 77 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C |
|
|
8L01-24-001RELAY REED SPST 500MA 24V |
487 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | - | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L01-05-011RELAY REED SPST 500MA 5V |
3,246 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.8 VDC | 0.5 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
|
|
8L01-24-011RELAY REED SPST 500MA 24V |
3,673 | - |
|
Datasheet |
Tube | 8L | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 11 mA | Non Latching | Diode | PC Pin | - | 19.2 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C |
